An electric anchor winch is an electrically-powered winch used to raise and lower boat anchors during anchoring operations. According to different electrical systems on ships, there are DC electric winch and AC electric winch. DC winch has good characteristic of regulating the speed, high usage efficiency, but it’s with high cost of first set and the brush should be maintained regularly. Compared with DC winch, AC winch has relative poor performance on speed regulation, it gets several speed grades with pole changing or relying on a set of reduction gear mechanism between the electric motor and the windlass, however, the reduction gear mechanism has complex structure and heavy weight and takes up large area on the deck. Generally speaking, planetary gear reduction transmission mechanism has been widely used at present because of its light weight, small volume, high transmission efficiency and easy maintenance.
Anchor electric winch is powerful and work effectively during the operations, and the electric motor of the winch can be shut off from the outside world, and there will be no exposure to marine environment like excessive moisture. When the electric boat anchor winch is not in use, it can be covered. If you need our electric windlass quotation, you can just tell us and send your inquiry by email.
Electric anchor winch parameters:
- Dia of anchor chain/rope: ø12mm – ø128mm
- No. of gypsy: single or double
- Speed: 9-11 m/min
- Certificate: BV, ABS, DNV, RMRS, etc
Electric single gypsy anchor winch parameters:
- Dia of anchor chain/rope: ø12mm – ø128mm
- No. of gypsy: single
- Speed: 9-11 m/min
- Certificate: BV, ABS, DNV, RMRS, etc
Lanteky electric anchor winch parameters:
- Dia of anchor chain/rope: ø12mm – ø128mm
- No. of gypsy: single
- Load capacity: 1ton- 100ton
- Speed: 9-11 m/min
- Certificate: BV, ABS, DNV, RMRS, etc

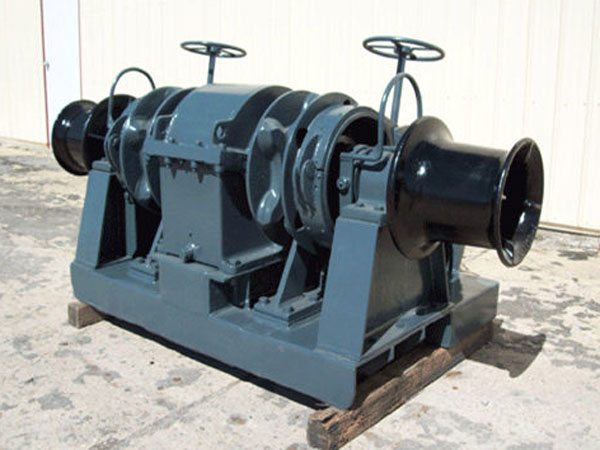

Double gypsy electric anchor winch parameters:
- Dia of anchor chain/rope: ø12mm – ø128mm
- No. of gypsy: double
- Load capacity: 1ton- 100ton
- Speed: 9-11 m/min
- Certificate: BV, ABS, DNV, RMRS, etc
Electric anchor windlass parameters:
- Dia of anchor chain/rope: ø12mm – ø128mm
- No. of gypsy: single or double
- Load capacity: 1ton- 100ton
- Speed: 9-11 m/min
- Certificate: BV, ABS, DNV, RMRS, etc
Double drum electric anchor windch parameters:
- Dia of anchor chain/rope: ø12mm – ø128mm
- No. of drum: double
- Load capacity: 1ton- 100ton
- Speed: 9-11 m/min
- Certificate: BV, ABS, DNV, RMRS, etc
Lanteky double gypsy anchor winch parameters:
- Dia of anchor chain/rope: ø12mm – ø128mm
- No. of gypsy: double
- Load capacity: 1ton- 100ton
- Speed: 9-11 m/min
- Certificate: BV, ABS, DNV, RMRS, etc
It’s necessary to check the motor, electric control box, master controller wiring and oil before using the anchor winch on ship ensuring its safe work and operations. The motor of electric anchor winch should be powered by independent feeder set on main switchboard, and it should be checked and repaired regularly.
Notes on Installing Electric Anchor Winch
- User’s guide of anchor winch should be kept carefully and the operators should grasp it completely;
- During the installation, it’s necessary to make sure the wrap angle between chain wheel and chain of the winch should be in the range of 116-120°;
- It’s important to pay attention to safe operation and work of the electric drum anchor winch in order to avoid accident;
- Professionals should be in charge of installing anchor windlass, and check it before acceptance;
- Commissioning should be done by professional electricians in accordance with user’s manual.
Important Things about Safe Anchoring
Anchoring is an important skill, no matter when and where you anchor your boat or ship, proper anchoring is vital to keep the boat or ship safe and secure. It is worth mentioning that anchoring should not be a rush job, and it is necessary to do the anchoring in the approved and appropriate spot to make sure the boat or ship is anchored reliably with a quality anchor winch. There are some tips on safe anchoring in the following:
- Always remember to approach the anchorage slowly and never anchor on coral;
- It is necessary to decide exactly where to anchor, note water depths and the position of shallow water, reef etc with chart and cruising guide;
- Always remember to determine the scope whiling anchoring and note the spot where you will drop the anchor;
- After you let out an appropriate amount of scope, it is important to make sure the line is properly and reliably tied off on the bow cleat;
- Keep the anchoring process slow and steady, and keep watching and checking during the whole anchoring operations;
- Make sure the anchoring work is carried out by persons who know the skill well, and the persons without getting anchoring skills is forbidden to do it.
To ensure the safe and reliable anchoring, it is necessary and vital to get a suitable and quality anchor winch. It is relatively easy to operate an electric anchor windlass. Many winches have either foot switches which are located near the winch or remote controls that can be operated by the operators anywhere on the ship. As a professional and experienced winch manufacturer in China, Sinma company has been in this industry for decades and our clients are from all over the world. If you would like to get more information on electric anchor winch for sale, please contact us without hesitation, and we have variety of electric marine winches available for your choice.
Technical Parameter of Electric Anchor Winch
Model | Chain Dia. | Working load | Supporting load | Working speed | Warping load | Warping speed | Motor power | Overall Dimensions | Weight |
mm | KN | KN | m/min | m/min | KW | mm | T | ||
El-24 | 24 | 25-27 | 149-214 | 9 | 20 | 8.5 | 8.5/3.5 | 1400x1625x1050 | 3.3 |
El-26 | 26 | 29-32 | 175-250 | 9 | 20 | 8.5 | 8.5/3.5 | 1400x1625x1050 | 3.3 |
El-28 | 28 | 33-37 | 202-289 | 9 | 20 | 8.5 | 11/11/7.5 | 1600x1845x1150 | 3.8 |
El-30 | 30 | 38-42 | 231-331 | 9 | 30 | 8.5 | 11/11/7.5 | 1600x1845x1150 | 3.8 |
El-32 | 32 | 44-49 | 262-375 | 9 | 30 | 8.5 | 16/16/11 | 1775x2025x1270 | 4.6 |
El-34 | 34 | 49-55 | 295-422 | 9 | 30 | 8.5 | 16/16/11 | 1775x2025x1270 | 4.6 |
El-36 | 36 | 55-62 | 329-473 | 9 | 30 | 8.5 | 16/16/11 | 1775x2025x1270 | 4.6 |
El-38 | 38 | 61-69 | 365-522 | 9 | 50 | 8.5 | 22/22/16 | 1900x2150x1350 | 5.2 |
El-40 | 40 | 68-76 | 403-576 | 9 | 50 | 8.5 | 22/22/16 | 1900x2150x1350 | 5.2 |
El-42 | 42 | 75-84 | 442-630 | 9 | 50 | 8.5 | 22/22/16 | 1900x2150x1350 | 5.2 |
