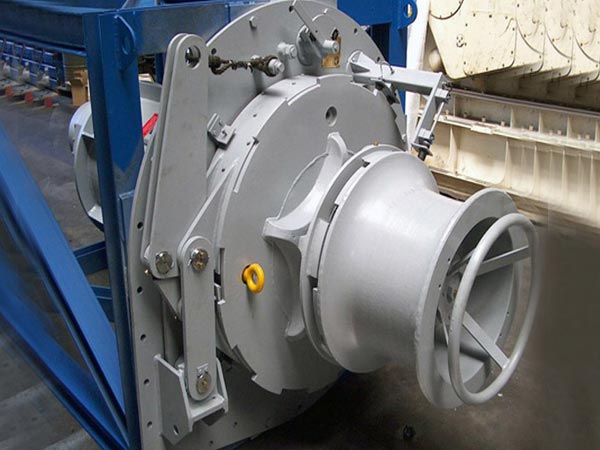

Hydraulic Capstan

Hydraulic capstan is driven by a hydraulic motor with counter balance valve, it can be operated at variable speeds with gearbox, and it’s easy to operate. There is an in-built emergency stop system, the gearbox of the capstan is located in warping head and the motor also can be set in the warping head on request. Generally speaking, hydraulic capstans tend to be more powerful and efficient than their electric powered counterparts, which are known as electric capstans. Some ships adopt rope as line and some adopts cable and the others adopt chain or the combination of rope and chain, so there are hydraulic capstan rope winch and hydraulic capstan cable winch, and chain wheel should be equipped on the capstan for the chain.

Features of Sinma Hydraulic Capstan

1. The hydraulic capstan motor is with counter balance valve;
2. Various rope sized can be used for this type of capstan winch;
3. The planetary gear box is with small volume;
4. The hydraulic capstans can be equipped with local or remote control as needed;
5. There are variable speeds optional to suit different work requirements;
6. The hydraulic capstan winch has compact structure with in-built emergency stop;
7. The capstans are with easy installation and operation, if you need to stop the pull, you just need to reduce the amount of tension you are applying to the rope;
8. Lanteky hydraulic capstans have long service life and good working performance;
9. The hydraulic capstans are generally with compact structure than the electric versions and they have very reasonable and competitive price.

What Hydraulic Capstan Winch Is Used for

As a kind of marine equipment, the hydraulic capstans can be installed on ship deck or wharf, and be used for anchoring and mooring ship when it reaches and leaves a port or a dock, and also used for pulling weights on ship. Compared with hydraulic boat winch, the capstan is relatively small and takes less space on deck, which is suitable for the boat or ship that is not very large.

Hydraulic capstans can be used for different operations, and the main function of them is to haul or pull the ship toward the dock to keep the ship safe, that’s why it is so important to buy hydraulic capstan with high quality to ensure the reliable and safe work. With the right and suitable capstan for your ship, it will work the way as it is supposed to, and it will make the operations on the ship easier and safer.

Hydraulic Capstan Winch for Sale

In order to produce top quality hydraulic capstans, Sinma’s engineers pay much attention to every detail in design and production process in accordance with customers’ demands and requirements, mainly focusing on structure design, choice of hydraulic components and hydraulic system and so on. As a professional and leading marine winch and capstan equipment supplier in China, we only manufacture high-quality winches and capstans to cater for your anchoring and mooring needs. To know more about our capstans and marine winches, please contact us and you will be provided with all details about our products.

Technical Parameter of Hydraulic Capstan

Type	Warping load (KN）	Warping speed(m/min）	Wire Dia(mm)	Motor power (kw)
				Electric	Hydraulic
D(Y)J5	5	≥18	φ11	3/1.2	5.5
D(Y)J10	10	≥18	φ11	4.3/1.7	7.5
D(Y)J20	20	≥18	φ15	7.5/7.5/5	15
D(Y)J30	30	≥18	φ17.5	16/16/11	18.5
D(Y)J40	40	≥18	φ20.5	16/16/11	18.5
D(Y)J50	50	≥18	φ20.5	22/22/16	30
D(Y)J70	70	≥15	φ26	30/30/22	45
D(Y)J100	100	≥15	φ28	45/45/30	55
D(Y)J120	120	≥15	φ32.5	60/60/45	75
D(Y)J150	150	≥15	φ36.5	60/60/45	90
D(Y)J200	200	≥15	φ40	75/75/36	110
D(Y)J250	250	≥12	φ46	75/75/36	110

Please feel free to send inquiry or email to us.
