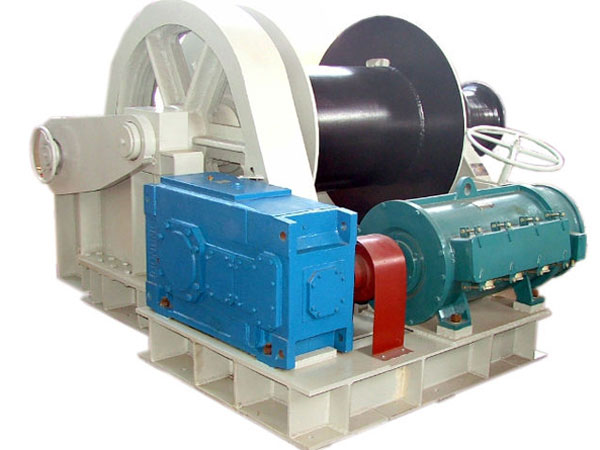

Electric Mooring Winch

Electric mooring winch is electrically driven by the motor, vessels use it for drawing out and pulling in the lines of cable, rope or chain to attach to docks and stop there safely without drifting and moving; except that, the winch also has other functions, for example, loading and unloading weights. The winches can also be powered by hydraulic pump or diesel engine, that is to say, there are also hydraulic mooring winch and diesel mooring winch optional to meet different mooring needs.

Electric Mooring Winch Parts and Functions

The main parts of mooring winch comprise electric motor, mooring drum, warping head (optional), gypsy wheel (for combined winch), gearbox, clutch unit, brake system, and so on. The electric motor drives the winch drum by gearbox to wind rope or cable during mooring work, the brake is fixed between the motor and input shaft. The winch operators can wrap the rope, cable or chain around the winch drum in mooring operations.

As an important marine device, mooring winch is used to hold a boat or ship in place at a pier or similar fixture to secure the boat or ship. The winch can be installed on the deck of the ship, which allows the operators to position and secure the ship carefully when it comes to the port. On the ship deck, the operators can control the winch directly, and some mooring winches are also equipped with remote control, which allows the operators to control the winch device at a certain distance. When the winch is not in use, it can be covered to reduce and limit the exposure to the elements and to reduce the risks of injuries. It is worth mentioning that before the mooring work, unnecessary personnel should keep away from the winch for safety reasons.

Marine Electric Mooring Winch Manufacturer-Sinma Company

Adapting to the different needs of hauling, loading, unloading and rotary work, the mooring winch is designed and produced with one, two or multiple drums. As one of the professional mooring winch suppliers in China for decades, Lanteky designs and manufactures electric mooring winches with different number of drums including mooring and anchoring drum and warping head. Since there are various types of mooring winches, the winches users want to get the best designs to suit all their work requirements. It is necessary to know that the best winch design depends on the ship type and size, the weight of the mooring line, and the likely level of the stress the line may endure when the ship is in the port.

Lanteky electric mooring winches are designed and produced by professional engineers and workers, and the whole process is strictly controlled and managed to guarantee the quality of the winches. Choose us, and you will get the good-quality and most suitable marine winch products for your mooring operations. As an important piece of deck equipment, it is necessary to do inspection and maintenance regularly to ensure the longer use of the winch.

Technical Parameter

Model	Rated pull(KN)	Rated speed(m/min)	Drum capacity(mmxm)	Braking force(KN)	Motor power(KW)	Dimensions(mm)	Weight(Ton)
EL-20	20	12	15×200	60	11	1800x1150x1825	2.5
EL-30	30	12	16×200	90	15	1950x1200x1900	3
EL-50	50	12	22×220	150	22	2050x1200x2000	3.5
EL-80	80	12	28×220	240	37	2175x1250x2100	4
EL-100	100	12	30×220	300	45	2320x1285x2175	5
EL-125	125	12	32×220	375	55	2385x1325x2250	5.5
EL-150	150	12	36×220	450	75	2500x1465x2400	6
EL-200	200	10	39.5×350	600	75	2600x1670x2625	9
EL-250	250	10	43×450	750	90	2850x1800x2900	12.5
EL-320	320	8	47×550	960	90	3050x1975x3100	18
EL-400	400	8	52×600	1000	110	3375x2050x3400	22
EL-500	500	9	56×600	750	180	4750x2800x3850	25
